AWS Cloud

Updated 2024.12.02

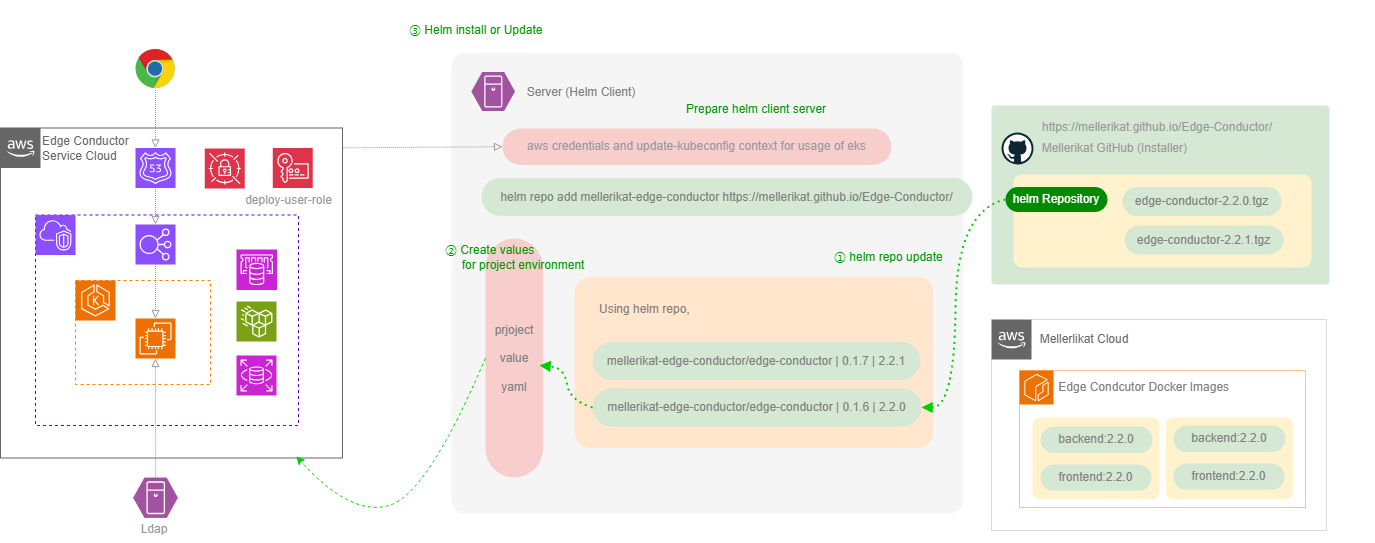

You can install Edge Conductor in an AWS Cloud environment. The installation is done using Helm, a Kubernetes object customization tool.

infra

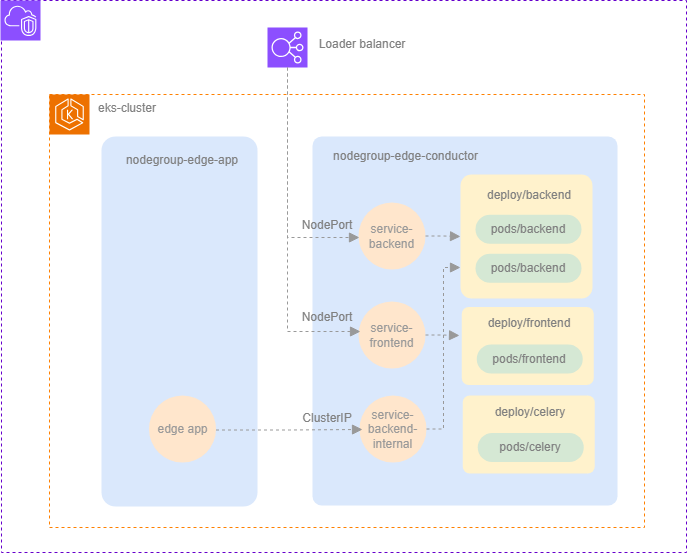

Below are the components running inside EKS.

infra

Prepare Deploy Server

aws cli installation and setup

Install aws cli

AWS Command Line Interface(AWS CLI) is an open source tool that enables you to interact with AWS services using commands in your command-line shell.

$ curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
$ unzip awscliv2.zip
$ sudo ./aws/install

$ aws --version
aws-cli/2.12.7 Python/3.11.4 Linux/5.4.0-196-generic exe/x86_64.ubuntu.20 prompt/off

For more information about installing aws cli, please refer to the link below. https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

aws configure setup

## aws configure setup
$ aws configure
AWS Access Key ID [None]: {{access-key}}
AWS Secret Access Key [None]: {{secret-key}}
Default region name [None]: ap-northeast-2
Default output format [None]: json

## check aws configure
$ cat .aws/credentials
[default]
aws_access_key_id = {{access-key}}
aws_secret_access_key = {{secret-key}}

## Returns details about the IAM user
$ aws sts get-caller-identity
{
    "UserId": "userid",
    "Account": "account",
    "Arn": "arn:aws:iam::account:user/username"
}

access-key : Access Key for role with control permissions over the AWS Cloud EKS
secret-key : Secret Key for role with control permissions over the AWS Cloud EKS

kubeconfig setup

Configure kubectl to control the AWS Cloud EKS cluster in installed Edge Conductor.

## aws configure setup
$ aws eks update-kubeconfig --region ap-northeast-2 --name {{eks-cluster-name}}

## Check kubeconfig settings
$ kubectl config get-contexts
CURRENT   NAME                                                               CLUSTER                                                            AUTHINFO                                                                   NAMESPACE
*         arn:aws:eks:ap-northeast-2:000000000000:cluster/eks-cluster-name   arn:aws:eks:ap-northeast-2:000000000000:cluster/eks-cluster-name   arn:aws:eks:ap-northeast-2:000000000000:cluster/eks-cluster-name

eks-cluster-name : Name of the AWS Cloud EKS Cluster

For more detailed information, refer to the following Amazon EKS install-kubectl

Install helm

The Helm community provides methods to install Helm through different package managers. For installation methods using other methods (script, apt, etc.), please refer to the official installation helm page.

From snap

sudo snap install helm --classic

From apt

curl https://baltocdn.com/helm/signing.asc | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null
sudo apt-get install apt-transport-https --yes
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list
sudo apt-get update
sudo apt-get install helm

Check helm installation

$ helm version
version.BuildInfo{Version:"v3.16.4", GitCommit:"7877b45b63f95635153b29a42c0c2f4273ec45ca", GitTreeState:"clean", GoVersion:"go1.22.7"}

$ helm
The Kubernetes package manager

Common actions for Helm:

- helm search:    search for charts
- helm pull:      download a chart to your local directory to view
- helm install:   upload the chart to Kubernetes
- helm list:      list releases of charts

Environment variables:
...

Deploy Edge Conductor

After you set up the Deployment Server and install the helm client, add the Helm repo(Chartmuseum) to install the Edge Conductor.

Add Helm repository

helm repo add mellerikat-edge-conductor https://mellerikat.github.io/Edge-Conductor/

List chart repository

helm repo ls

Update information of Helm repo

To update information of available charts locally from chart repositories

helm repo update

Search Helm chart

helm search repo mellerikat-edge-conductor [ --versions {{chart-version}} ]

Display information of chart

helm show chart mellerikat-edge-conductor/edge-conductor [ --version {{chart-version}} ]

Below is an example of checking the repo and chartmuseum after adding the Helm repo.

$ helm repo add mellerikat-edge-conductor https://mellerikat.github.io/Edge-Conductor/
"mellerikat-edge-conductor" has been added to your repositories

$ helm repo list
NAME                              URL
mellerikat-edge-conductor         https://mellerikat.github.io/Edge-Conductor/

$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "mellerikat-edge-conductor" chart repository
Update Complete. ⎈Happy Helming!⎈

$ helm search repo edge-conductor --versions
NAME                                            CHART VERSION   APP VERSION     DESCRIPTION
mellerikat-edge-conductor/edge-conductor        1.1.3           2.3.1-beta1     A Helm chart for Edge Conductor
mellerikat-edge-conductor/edge-conductor        1.1.0           2.3.1           A Helm chart for Edge Conductor

$ helm show chart mellerikat-edge-conductor/edge-conductor --version 1.1.3
apiVersion: v2
appVersion: 2.3.1-beta1
dependencies:
- condition: backend.enabled
  name: backend
  repository: ""
- condition: frontend.enabled
  name: frontend
  repository: ""
description: A Helm chart for Edge Conductor
home: https://github.com/mellerikat/Edge-Conductor
maintainers:
- email: youngjun.jeon@lge.com
  name: youngjun.jeon
name: edge-conductor
sources:
- https://github.com/mellerikat/Edge-Conductor
type: application
version: 1.1.3

Create Project Value

helm show values mellerikat-edge-conductor/edge-conductor [ --version {{chart-version}} ] | tee project-values.yaml

Edge Conductor installation supports different infrastructure resource names, permissions, and other settings depending on the Cloud environment.

The downloaded Base charts file contains these settings as default values, which can be modified by the installer if needed.

The modified values should be saved in a YAML file (e.g., project-values.yaml) and used during helm install or upgrade.

Some values must follow the resource names and settings configured in EKS.

For detailed explanation of Value, refer to About Project Value

Install

helm install {{release-name}} --values {{project-value}} --namespace {{namespace}} {{chart-name}} --version {{chart-version}}

Upgrade

helm upgrade --install {{release-name}} --values {{project-value}} --namespace {{namespace}} {{chart-name}} --version {{chart-version}}

Below is an example of executing the commands. Run the appropriate command depending on whether you are installing or upgrading.

$ helm install edge-conductor --values ./project-vaules.yaml --namespace edge-conductor mellerikat-edge-conductor/edge-conductor --version 1.0.0

$ helm upgrade --install edge-conductor --values ./project-values.yaml --namespace edge-conductor mellerikat-edge-conductor/edge-conductor --version 1.0.0

Delete

helm delete {{release_name}} --namespace {{namespace}}

If necessary, the user can stop the service. Below is an example of checking and stopping the currently running helm processes.

$ helm list -nedge-conductor
NAME            NAMESPACE       REVISION        UPDATED                                 STATUS          CHART                   APP VERSION
edge-conductor  edge-conductor  1               2024-07-16 07:53:36.231641998 +0000 UTC deployed        edge-conductor-0.1.7    v2.2.1

$ helm delete edge-conductor --namespace edge-conductor

About Project Value

For reference, the following is an example, and the addition or deletion of env Value values may vary depending on the chart version.

Global parameters

Name	Description	Dependent on Cloud Infra	Unique within EKS Cluster	Example
`serviceAccount.name`	K8s Service Account Name for running Edge Conductor	O	O	`edge-conductor`
`nodeSelector.nodegroup`	NodeGroup information created in the Cloud for Edge Conductor	O	X	`nodegroup: ng-an2-edgecond-mellerikat`

backend parameters

Name	Description	Dependent on Cloud Infra	Unique within EKS Cluster	Example
`backend.service.nodePort`	Port information for the backend service	O	O	`31020`
`backend.replicaCount`	Number of pod replicas for deployment	X	X	`2`
`backend.flower.replicaCount`	Number of pod replicas for flower deployment	X	X	`2`

frontend parameters

Name	Description	Dependent on Cloud Infra	Unique within EKS Cluster	Example
`frontend.service.nodePort`	Port information for the frontend service	O	O	`31010`
`frontend.replicaCount`	Number of pod replicas for deployment	X	X	`1`

common parameters

Name	Description	Dependent on Cloud Infra	Unique within EKS Cluster	Example
`pv.storageClassName`	Name of the StorageClass used in PersistentVolume	X	X	`efs-sc-edgecond`
`pv.csi.vloumeHandle`	EFS ID used in the PV StorageClass	O	O	`fs-00000000000000000`
`redis.url`	Address of the ElasticCache (Redis) in AWS	O	O	`rediss://master.redis.xxxxx.apn2.cache.amazonaws.com:6379`
`secret.objects.name`	AWS Secret Manager information	O	X	`/parameter/ap-northeast-2/mellerikat/dev/rds`
`configMap.data.BACKEND_CORS_ORIGINS`	Edge Conductor domain information defined in Route53	O	X	`'["https://edgecond.meerkat-dev.com"]'`
`configMap.data.BACKEND_ENDPOINT`	Edge Conductor domain information defined in Route53	O	X	`https://edgecond.meerkat-dev.com`
`configMap.data.MYSQL_NAME`	Database schema name for RDS MySQL	O	X	`edge_conductor`
`configMap.data.SERVER_IP`	Edge Conductor domain information defined in Route53	O	X	`edgecond.meerkat-dev.com`
`configMap.data.WORKSPACE`	Unique name of the installed Edge Conductor for the summary server	X	X	`edge_conductor_meerkat_dev`
`configMap.data.LDAP_HOST`	LDAP information (leave empty if unsupported)	X	X	`*`
`configMap.data.UPDATE_CENTER_URL`	Update Center URL information	X	X	`https://xxxxxxxx.execute-api.ap-northeast-2.amazonaws.com/v1`

The following is the values file in edge-conductor chart version 1.1.0

values.yaml

$ helm show values edge-conductor-1.1.0.tgz | tree values.yaml

# Default values for edge-conductor.
# This is a YAML-formatted file.
# Declare variables to be passed into your templates.

## Global values are values that can be used from templetes or subchart(backend/frontend)
##
global:
  ## Set the deployed serviceAccount name
  serviceAccount:
    name: "edge-conductor"

  ## Set the nodeSelector
  nodeSelector:
    nodegroup: ng-an2-edgecond-mellerikat

  ## If not set, backend/frontend image tag will be "appVersion" in Chart.yaml.
  # tag: "2.2.1"


backend:
  ## Deploy backend
  enabled: true

  celery:
    enabled: true
    replicaCount: 1

  flower:
    enabled: false
    replicaCount: 1
    service:
      nodePort: 31070

  image:
    repository: "edge-conductor/backend"
    pullPolicy: IfNotPresent

    ## If not set, backend image tag will be .Values.global.tag.
    # tag: "2.2.1"

  replicaCount: 1

  service:
    nodePort: 31020
    internal:
      enabled: true


frontend:
  ## Deploy frontend
  enabled: true

  image:
    repository: "edge-conductor/frontend"
    pullPolicy: IfNotPresent

    ## If not set, backend image tag will be .Values.global.tag.
    # tag: "2.2.1"

  replicaCount: 1

  service:
    nodePort: 31010


pv:
  ## Use 'pv-{{ include "edge-conductor.fullname" . }}' by default
  nameOverride: ""
  csi:
    volumeHandle: fs-00000000000000000
  storageClassName: efs-sc-edgecond
  storage: 30Gi

  ## Use 'pvc-{{ include "edge-conductor.fullname" . }}' by default
  pvc:
    nameOverride: ""


redis:
  url: rediss://master.redis-an2-meerkat-dev-private.xxxxxx.apn2.cache.amazonaws.com:6379


secret:
  ## If you need additional secret data
  #
  data: []
  # - key: "MYSQL_USER"
  # objectName: "dbusername"

  objects:
    name: "/parameter/ap-northeast-2/mellerikat/dev/rds"

    ## If you need additional objects data
    #
    additionalObjects: []
    # - objectName: "/parameter/ap-northeast-2/mellerikat/dev/rds"
    #   objectType: "secretsmanager"
    #   jmesPath:
    #     - path: "username"
    #       objectAlias: "dbusername"

  ## Use '{{ include "edge-conductor.fullname" . }}-secretprovider' by default
  secretProvider:
    nameOverride: ""


configMap:
  ## Use config-{release-name} by default
  nameOverride: ""
  additionalConfig: {}

  data:
    BACKEND_CORS_ORIGINS: '["https://edgecond.meerkat-dev.com"]'
    BACKEND_ENDPOINT: https://edgecond.meerkat-dev.com
    MYSQL_NAME: edgecond_db
    SERVER_IP: edgecond.meerkat-dev.com
    WORKSPACE: edgecond.meerkat-dev

    ## The key below is given a default value, please modify it out if you want to change it.
    # CONTAINER_NAME: "edgecond"  # sh-script에서 사용 -> 삭제
    # DAILY_SUMMARY_SERVER_URL: "http://0.0.0.0:46599"
    # HOSTGID: HOSTGID  "1175"
    # HOSTUID: HOSTUID  "1175"
    # JWT_SECRET: "edgecond@lge"
    # LDAP_HOST: ""
    # LOGGING_COUNT: "90"
    # LOGGING_LEVEL: "INFO"
    # LOGGING_ROTATE: "0:00"
    # MYSQL_NAME: "edgecond_db"  # config에서 사용
    # PROJECT_NAME: "Mellerikat Edge Conductor"
    # SQLALCHEMY_POOL_MAX_OVERFLOW: "10"
    # SQLALCHEMY_POOL_SIZE: "5"
    # UPDATE_CENTER_URL: ""
    # VAULT_CATOZ: ""
    # VAULT_NAMESPACE: ""
    # VAULT_TOKEN: ""
    # WEBHOOK_TEAMS: ""
    #
